Kuzar

The best selling tower in the middle range of Kuzar. Very robust tower, designed to lift all kinds of structures and lighting systems of significant loads of 250kg. A larger base of steel profiles provides stability, four wider steel profiles are the muscle, and the wheels make transport simple and comfortable. With four legs with adjustable non-slip rubber saucers. Safety is provided by our automatic KAT trigger that locks the sections automatically while lifting the tower and also protects its load in the unlikely event that the Ø6mm steel cable is broken.

MAXIMUM HEIGHT 5.35m (17.6ft)
MAXIMUM LOAD 250kg (551lb)
NET WEIGHT 80kg (176.4lb)
FOLDED HEIGHT 1,74m (5.7ft)
WORK SURFACE 1.53×1.53m (5.02×5.02ft)
ADAPTERS Ø55mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

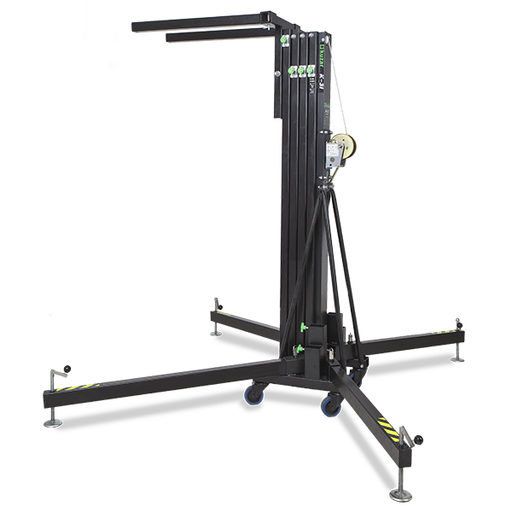

MAXIMUM HEIGHT 6.15m (20.18ft)
MAXIMUM LOAD 250kg (551lb)
NET WEIGHT 110kg (242.5lb)
FOLDED HEIGHT 1,87m (6.14ft)
WORK SURFACE 1,80×1,69m (5.9×5.5ft)
SECURITY “KAT” TRIGGER
COLOUR BLACK
MAIN MATERIAL ALUMINUM

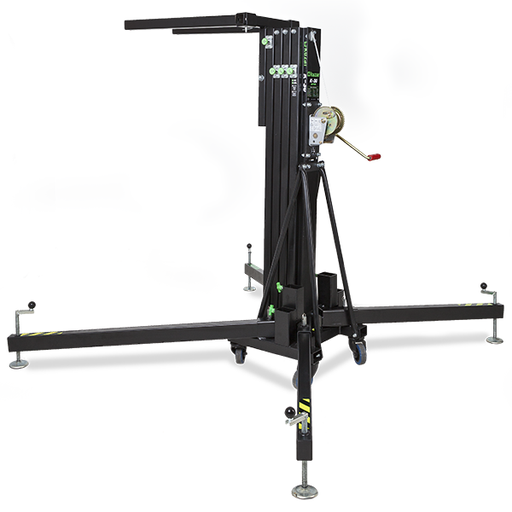

MAXIMUM HEIGHT 5m (16.4ft)
MAXIMUM LOAD 200kg (441lb)
NET WEIGHT 103kg (227lb)
FOLDED HEIGHT 1.56m (5.12ft)
WORK SURFACE 1.80×1.69m (5.9×5.5ft)
SECURITY “KAT” TRIGGER
COLOUR BLACK
MAIN MATERIAL ALUMINUM

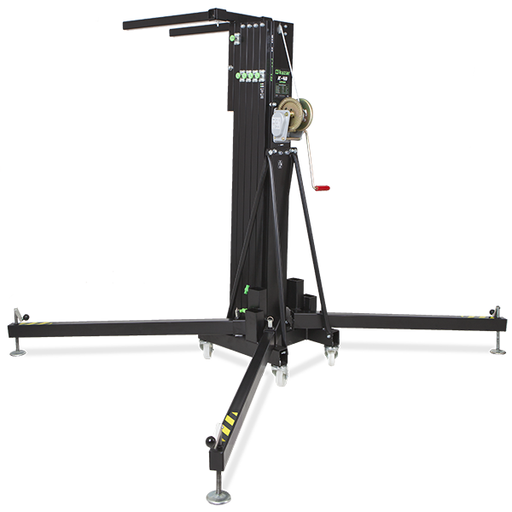

MAXIMUM HEIGHT 6,65m (21.82ft)
MAXIMUM LOAD 270kg (595lb)
NET WEIGHT 144kg (317.5lb)
FOLDED HEIGHT 1,78m (5.84ft)
WORK SURFACE 1,88×2,15m (6.17×7.05ft)
SECURITY “KAT” TRIGGER
COLOUR BLACK
MAIN MATERIAL ALUMINUM

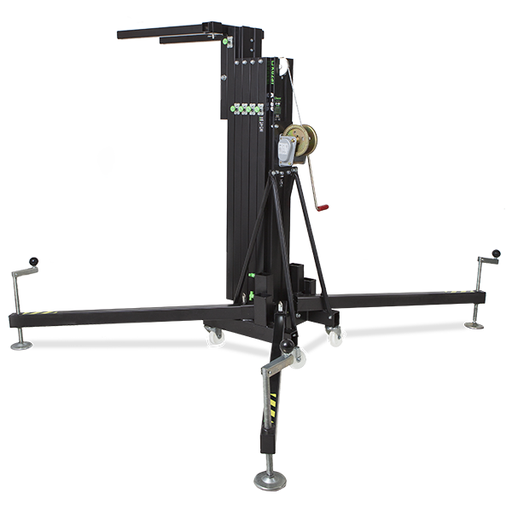

MAXIMUM HEIGHT 5.95m (19.5ft)
MAXIMUM LOAD 300kg (661lb)
NET WEIGHT 164kg (361.6lb)
FOLDED HEIGHT 1,57m (5.15ft)
WORK SURFACE 1,91×2,15m (6.27×7.05ft)
SECURITY “KAT” TRIGGER
COLOUR BLACK
MAIN MATERIAL ALUMINUM

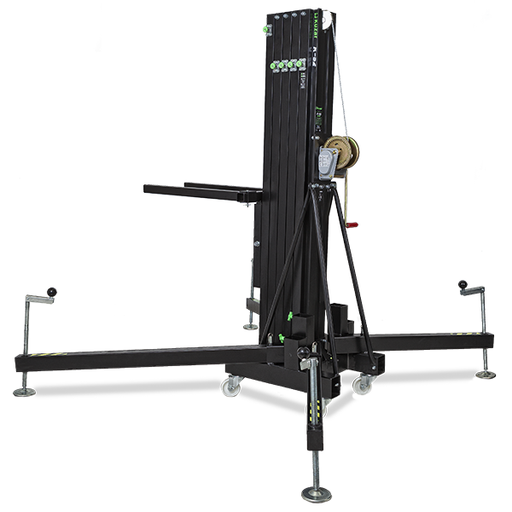

MAXIMUM HEIGHT 8m (26.25ft)
MAXIMUM LOAD 300kg (661lb)
NET WEIGHT 185kg (408lb)
FOLDED HEIGHT 1.99m (6.53ft)
WORK SURFACE 1.87×1.80m (6.14×5.9ft)
SECURITY “KAT” TRIGGER
COLOUR BLACK
MAIN MATERIAL ALUMINIUM

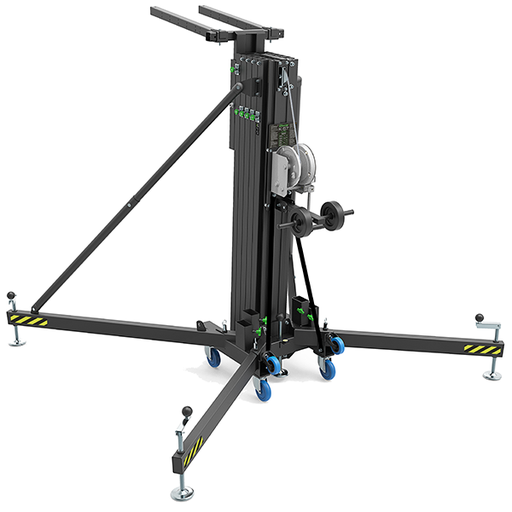

MAXIMUM HEIGHT 7 m (23 ft)
MAXIMUM LOAD DYNAMIC MODE 500 kg (1102 lb)
MAXIMUM LOAD STRUCTURAL MODE 1200 kg (2646 lb)
NET WEIGHT 223 kg (492 lb)
FOLDED HEIGHT 1.90 m (6.23 ft)
WORK SURFACE 2.34×2.25 m (7.7×7.4 ft)
SECURITY “KAT” TRIGGER
COLOUR BLACK
MAIN MATERIAL ALUMINIUM

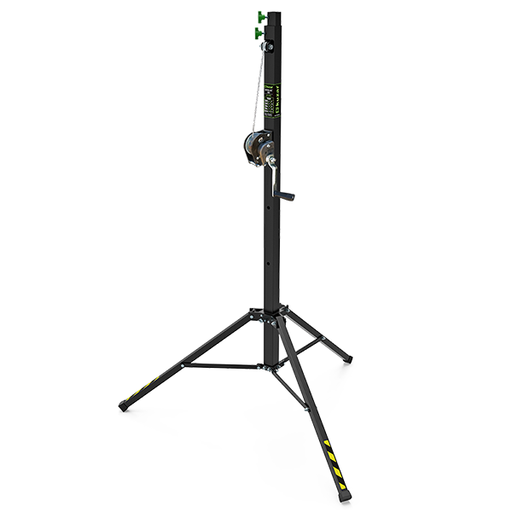

MAXIMUM HEIGHT 3m (9.84ft)
MAXIMUM LOAD 80kg (176lb)
NET WEIGHT 15kg (33lb)
FOLDED HEIGHT 1.55m (5.09ft)
WORK SURFACE 1.17×1.35m (3.8×4.4ft)
ADAPTERS Ø35mm+Ø29mm
COLOUR BLACK
MAIN MATERIAL STEEL

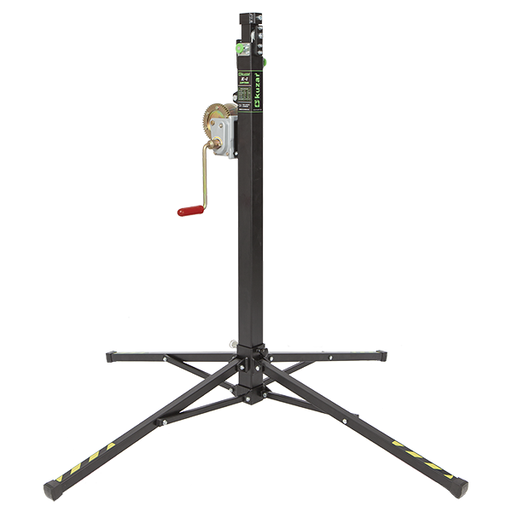

MAXIMUM HEIGHT 3.8m (12.47ft)
MAXIMUM LOAD 125kg (276lb)
NET WEIGHT 21kg (46.3lb)
FOLDED HEIGHT 1.26m (4.13ft)
WORK SURFACE 1.12×1.12m (3.67×3.67ft)
ADAPTERS Ø35mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

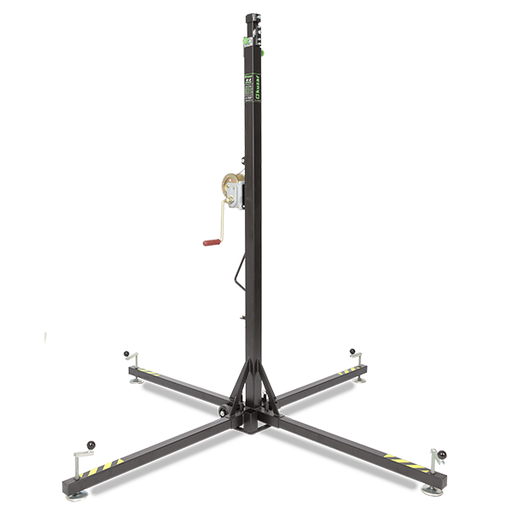

MAXIMUM HEIGHT 5m (16.4ft)
MAXIMUM LOAD 125kg (276lb)
NET WEIGHT 32kg (70.5lb)
FOLDED HEIGHT 1,9m (6.23ft)
WORK SURFACE 1.43×1.43m (4.7×4.7ft)
ADAPTERS Ø35mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

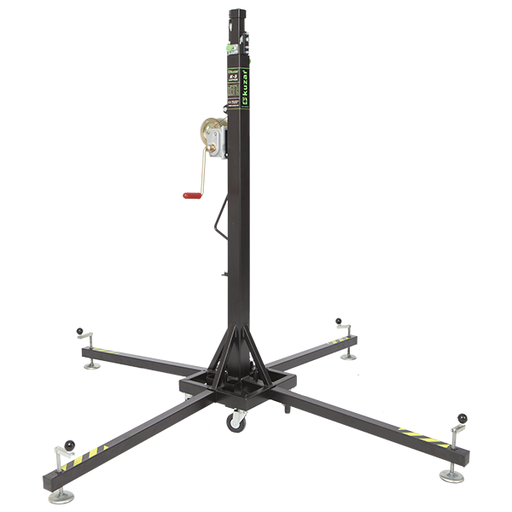

MAXIMUM HEIGHT 5.35m (17.55ft)
MAXIMUM LOAD 125kg (276lb)
NET WEIGHT 41kg (90.4lb)
FOLDED HEIGHT 1,72m (5.64ft)
WORK SURFACE 1.43×1.43m (4.7×4.7ft)
ADAPTERS Ø35mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

MAXIMUM HEIGHT 5.35m (17.55ft)
MAXIMUM LOAD 125kg (276lb)
NET WEIGHT 41kg (90.4lb)
FOLDED HEIGHT 1,72m (5.64ft)
WORK SURFACE 1.43×1.43m (4.7×4.7ft)
ADAPTERS Ø35mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

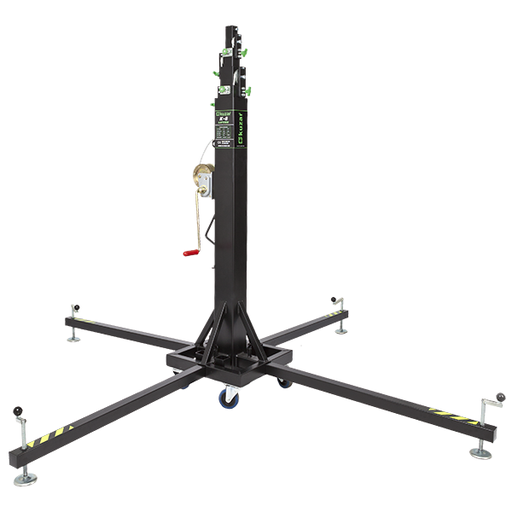

MAXIMUM HEIGHT 6.50m (21.33ft)
MAXIMUM LOAD 220kg (485lb)
NET WEIGHT 90kg (198.4lb)
FOLDED HEIGHT 1,82m (6ft)
WORK SURFACE 1.85×1.85m (6.07×6.07ft)
ADAPTERS Ø35mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

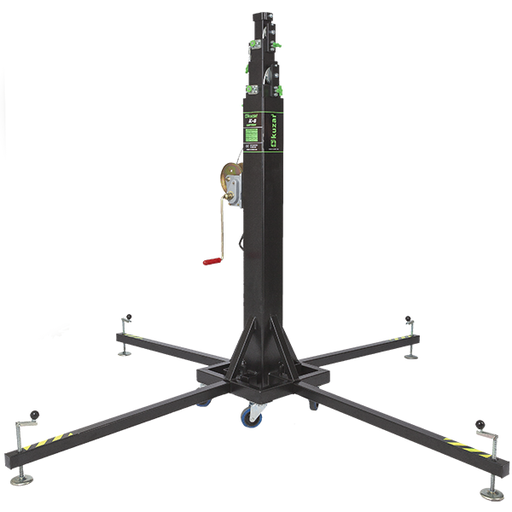

MAXIMUM HEIGHT 6.50m (21.33ft)
MAXIMUM LOAD 300kg (661lb)
NET WEIGHT 124kg (273.4lb)
FOLDED HEIGHT 1.87m (6.14ft)
WORK SURFACE 1.85×1.85m (6.07×6.07ft)
ADAPTERS Ø50mm
COLOUR SILVER OR BLACK
MAIN MATERIAL STEEL

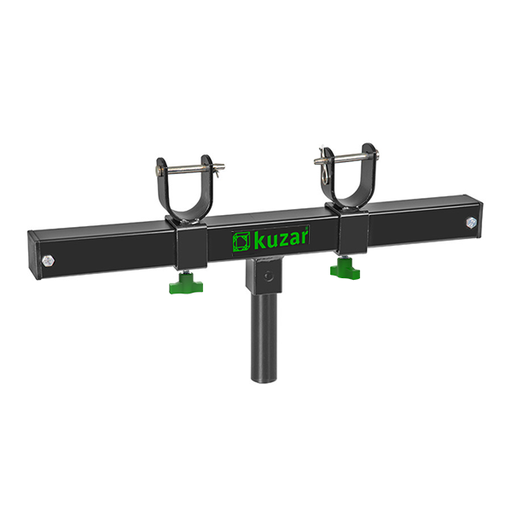

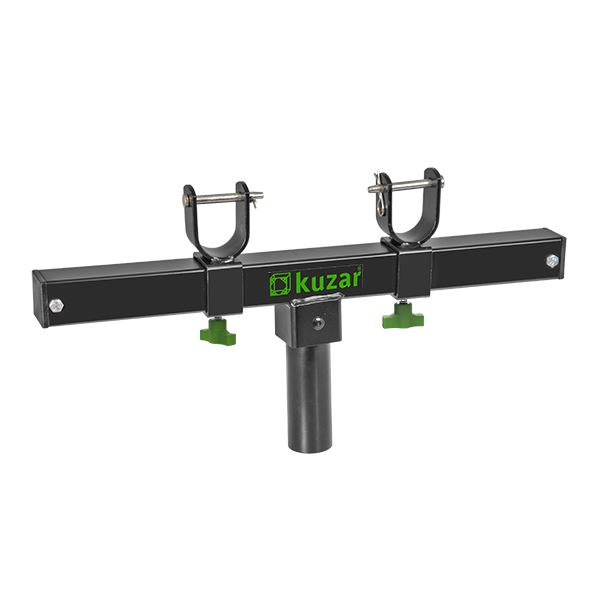

Truss support for Telescopic lifter. Insertion of Ø35mm.

Use with lifters K-1, K-2, K-3, K-6.

Truss support for Telescopic lifter. Insertion of Ø55mm.

Utilizar con torre K-5.

Truss support for Telescopic lifter. Insertion of Ø50mm.

Use with lifter K-8.

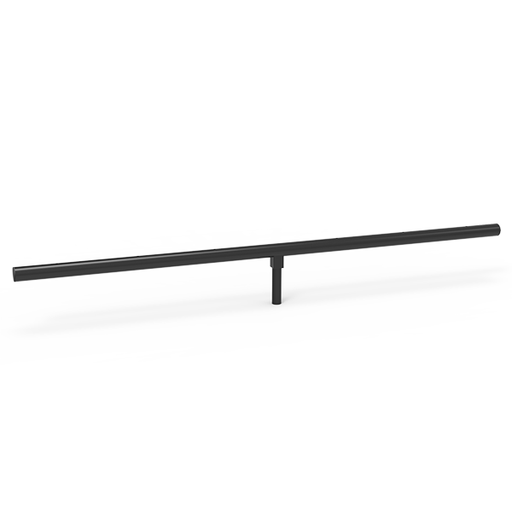

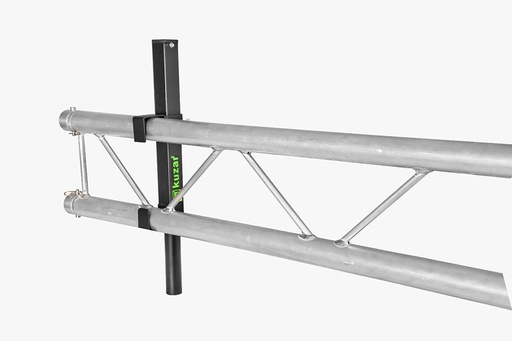

Support bar with length of 1.89m. Insertion Ø35mm.

Use with lifters Prime 80, K-1, K-2, K-3, K-6.

Support bar with length of 1.89m. Insertion Ø55mm.

Use with lifter K-5.

Support bar with length of 1.89m. Insertion Ø50mm.

Use with lifter K-8.

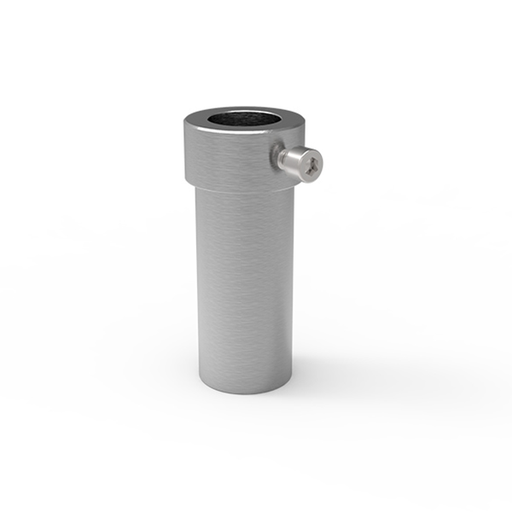

Adaptor for spigot. With insertion Ø35mm inside, Ø55mm outside.

Use with lifters K-5.

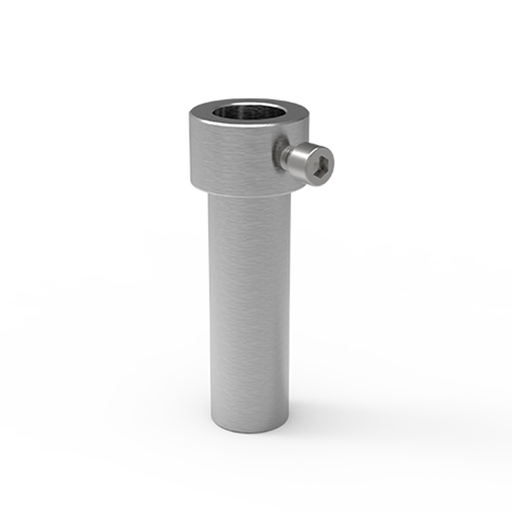

Adaptor for spigot. With insertion Ø29mm inside, Ø35mm outside.

Use with lifters Prime 80, K-1, K-2, K-3, K-6.

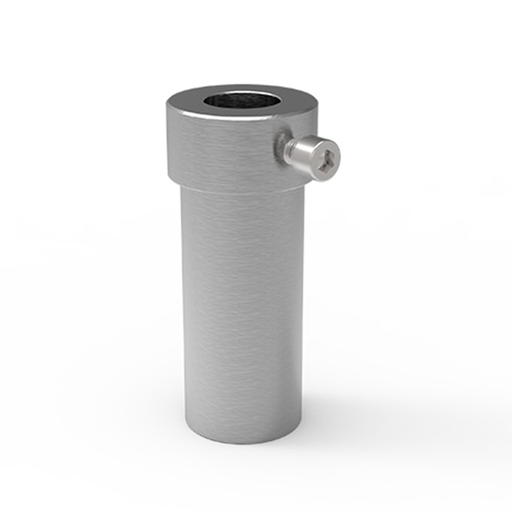

Adaptor for spigot. With insertion Ø29mm inside, Ø55mm outside.

Use with lifters K-5.

Adaptor for spigot. With insertion Ø29mm inside, Ø50mm outside.

Use with lifters K-8.

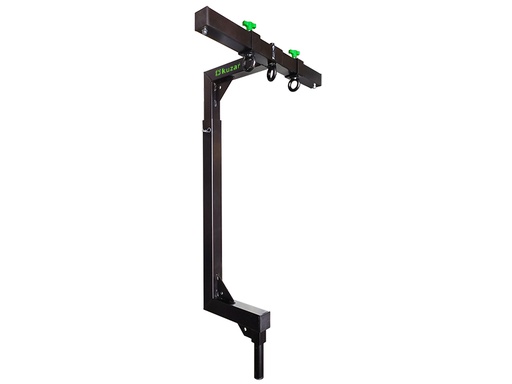

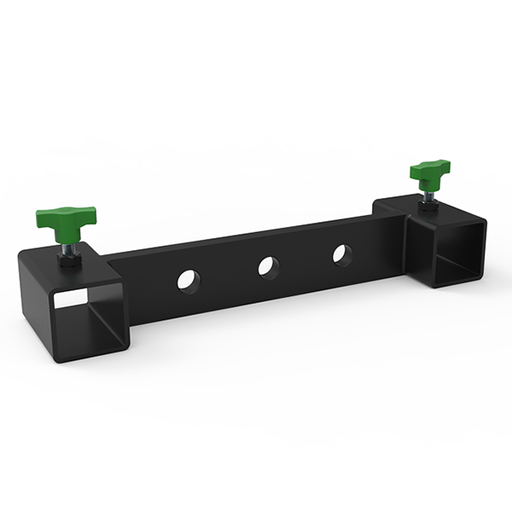

Line Array support for Telescopic lifter. Insertion of Ø35mm.

Maximun load capacity 120 kg (265 lb)

Use with lifters K-1, K-2, K-3, K-6.

Line Array support for Telescopic lifter. Insertion of Ø55mm.

Maximun load capacity 120 kg (265 lb)

Utilizar con torre K-5.

Line Array support for Telescopic lifter. Insertion of Ø50mm.

Maximun load capacity 120 kg (265 lb)

Use with lifter K-8.

Ladder Truss support with Ø35mm adaptor.

Use with lifters Prime 80, K-1, K-2, K-3, K-6.

Ladder Truss support joining a UN-3.

Special support to lift PA systems with the forks

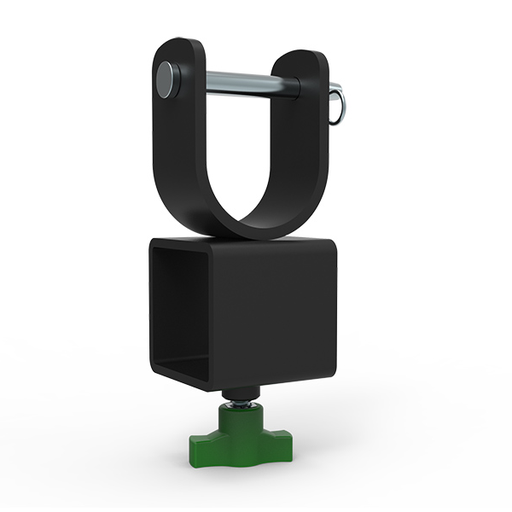

U piece for longitudinal load

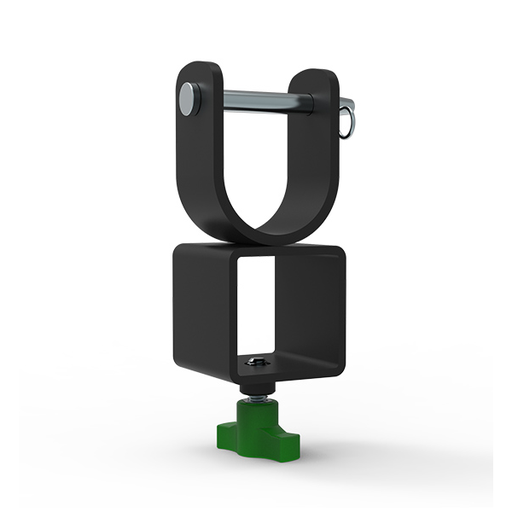

U piece for transverse load

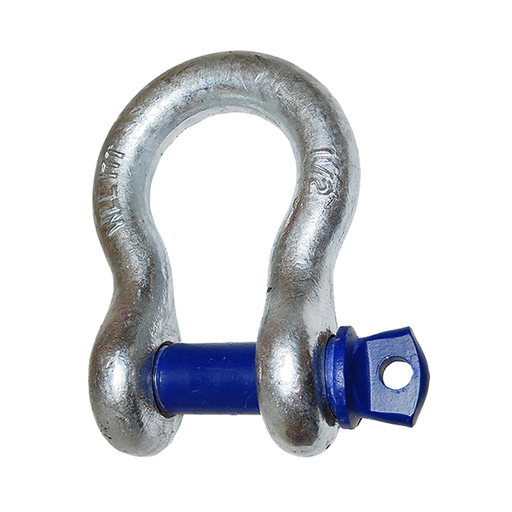

3250kg shackle for hanging PA systems in Top Load Lifters

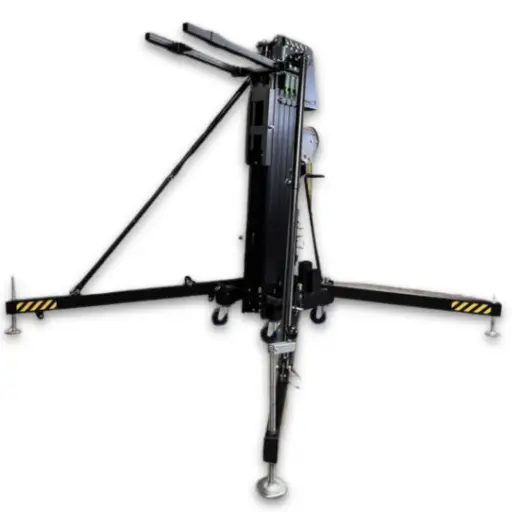

MAXIMUM HEIGHT 7.2 m (23.6 ft)
MAXIMUM LOAD DYNAMIC MODE 500 kg (1102 lb)
MAXIMUM LOAD STRUCTURAL MODE 1000 kg (2204 lb)
NET WEIGHT 259 kg (571 lb)
FOLDED HEIGHT 2.0 m (6.56 ft)
WORK SURFACE 2.39×2.39 m (7.84×7.84 ft)
COLOUR BLACK
MAIN MATERIAL ALUMINIUM
